At the Computex technology convention in Taipei, Dell introduced three desktop-bound PCs sporting the latest processors and mainstream graphics cards from AMD. On the CPU front, these span from the recently released Ryzen 7 1700X chip to the Ryzen 5 1400. Graphics-wise, Dell injected these three products with options for the Radeon RX 580 to the RX 560. There’s even Nvidia’s GeForce GTX 1060 thrown into the mix.

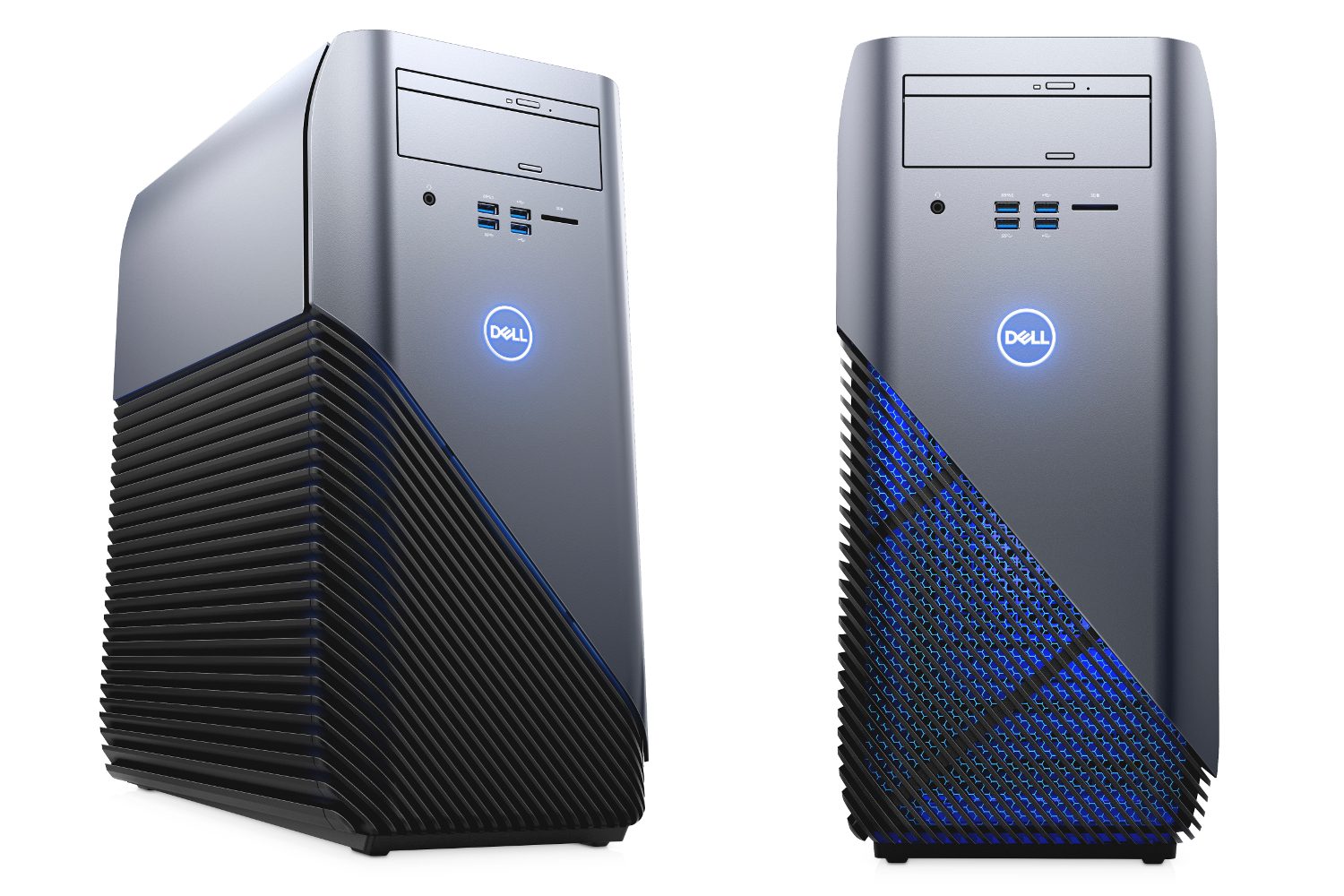

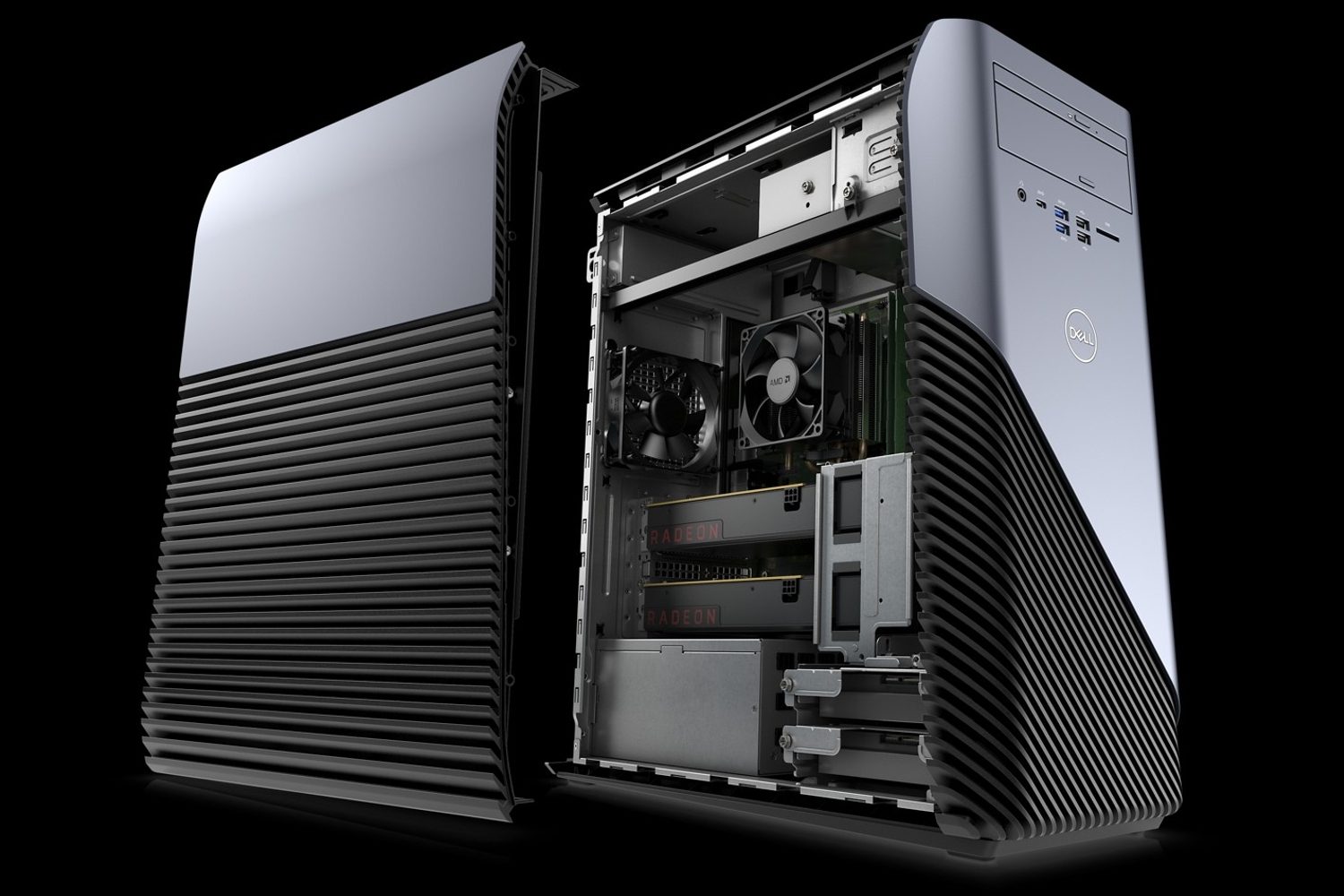

Inspiron Gaming Desktop
For starters, we have Dell’s new Inspiron-branded gaming desktop. Customers will have a choice of five processors from AMD: Three full-blown Ryzen chips and two “all-in-one” APUs. It’s here where the lone GeForce GTX 1060 comes into play, serving as one choice in a list of four graphics card options. Backing both are options for standard fan-based and liquid cooling to keep all those AMD processors cool under PC gaming pressure.
The list of hardware shown below is quite extensive. The types and amounts of ports depends on whether customers chose a Ryzen processor or an A-Series APU chip. Outside of that, some of the notable features offered in the desktop include up to 32GB of system memory clocked at 2,400MHz (DDR4), dual storage options (SSD + HDD), and Polar Blue LED illumination set against a metal-like silver casing. It’s an ideal setup for customers wanting to delve into high-end virtual reality without having to take out a loan at the bank.
Check out our hands-on for first impressions.
Operating systems: | Windows 10 Home 64-bit Windows 10 Pro 64-bit Ubuntu |
Processors: | AMD Ryzen 7 1700X AMD Ryzen 5 1600X AMD Ryzen 5 1400 AMD A12-9800 APU (with Radeon R7 graphics) AMD A10-9700 APU (with Radeon R7 graphics) |
Processor cooling: | Air Cooling — Smart cooling thermal solution Liquid Cooling |
Discrete graphics: | AMD Radeon RX 580 (8GB GDDR5) AMD Radeon RX 570 (4GB GDDR5) AMD Radeon RX 560 (2GB GDDR5) Nvidia GeForce GTX 1060 (6GB GDDR5) |
System memory: (DDR4, 2x slots) |
4GB @ 2,400MHz (4GB x 1) 8GB @ 2,400MHz (8GB x 1) (4GB x 2) 16GB @ 2,400MHz (16GB x 1) (8GB x 2) 24GB @ 2,400MHz DDR4 (8GB x 1 + 16GB x 1) 32GB @ 2,400MHz (16GB x 2) |
Storage (HDD): | 500GB 7,200RPM (3.5-inch, 2.5-inch) 1TB 7,200RPM (3.5-inch, 2.5-inch) 2TB 7,200RPM (3.5-inch, 2.5-inch) |
Storage (M.2 SSD): | 128GB 256GB |
Storage (mixed): | 128GB M.2 SSD (boot) + 500GB HDD 128GB M.2 SSD (boot) + 1TB HDD 256GB M.2 SSD (boot) + 2TB HDD |
Storage (optical): | Tray load Slim ODD DVD-RW |
Audio: | Built-in High Definition 7.1 Performance Audio Waves MaxxAudio Pro |
Expansion slots: (A10/A12) |
3x PCIe x1 1x PCIe x16 |

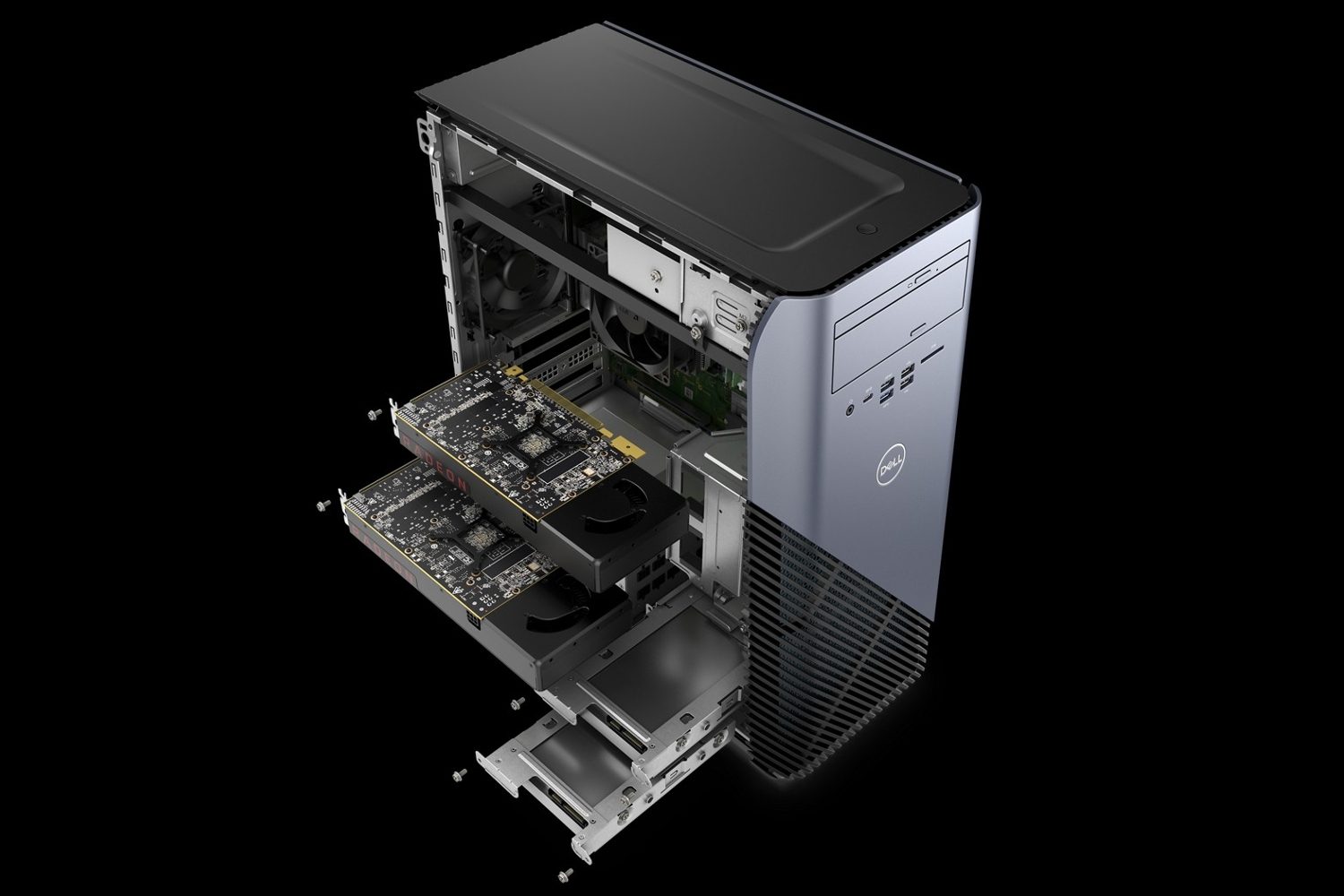

Expansion slots: (Ryzen 5/7) |
2x PCIe x1 2x PCIe x16 |
Ports – front: (A10/A12) |
2x USB 2.0 Type-A 2x USB 3.1 Gen1 Type-A 1x Audio combo jack 1x SD card reader |
Ports – back: (A10/A12) |
2x USB 2.0 Type-A 2x USB 3.1 Gen1 Type-A 1x P/S 2 port 1x 7.1-channel and Microphone Port 1x HDMI 1x Gigabit Ethernet |
Ports – front: (Ryzen 5/7) |
2x USB 2.0 Type-A 2x USB 3.1 Gen1 Type-A 1x USB 3.1 Gen1 Type-C 1x Audio Combo Jack 1x SD card reader |
Ports – back: (Ryzen 5/7) |
2x USB 2.0 Type-A 4x USB 3.1 Gen1 Type-A 1x P/S 2 port 1x 7.1-channel and Microphone Port 1x HDMI 1x Gigabit Ethernet |
Connectivity: | Wireless AC (2×2) (Up to 867Mbps) Wireless AC (1×1) (Up to 433Mbps) Bluetooth 4.1 |
Power supply: | 300 watts 460 watts |
Dimensions: | 18.07 (H) x 8.50 (W) x 17.23 (D) inches |
Starting weight: | 30.27 pounds |
Color: | Polar Blue with a solid panel |
Pre-installed software: |
My Dell Dell Digital Delivery Dell Backup & Recovery Dropbox Microsoft Office 2016 trial McAfee LiveSafe (30-day) |
Availability: | May 30, 2017 |
Starting price: | $600 |

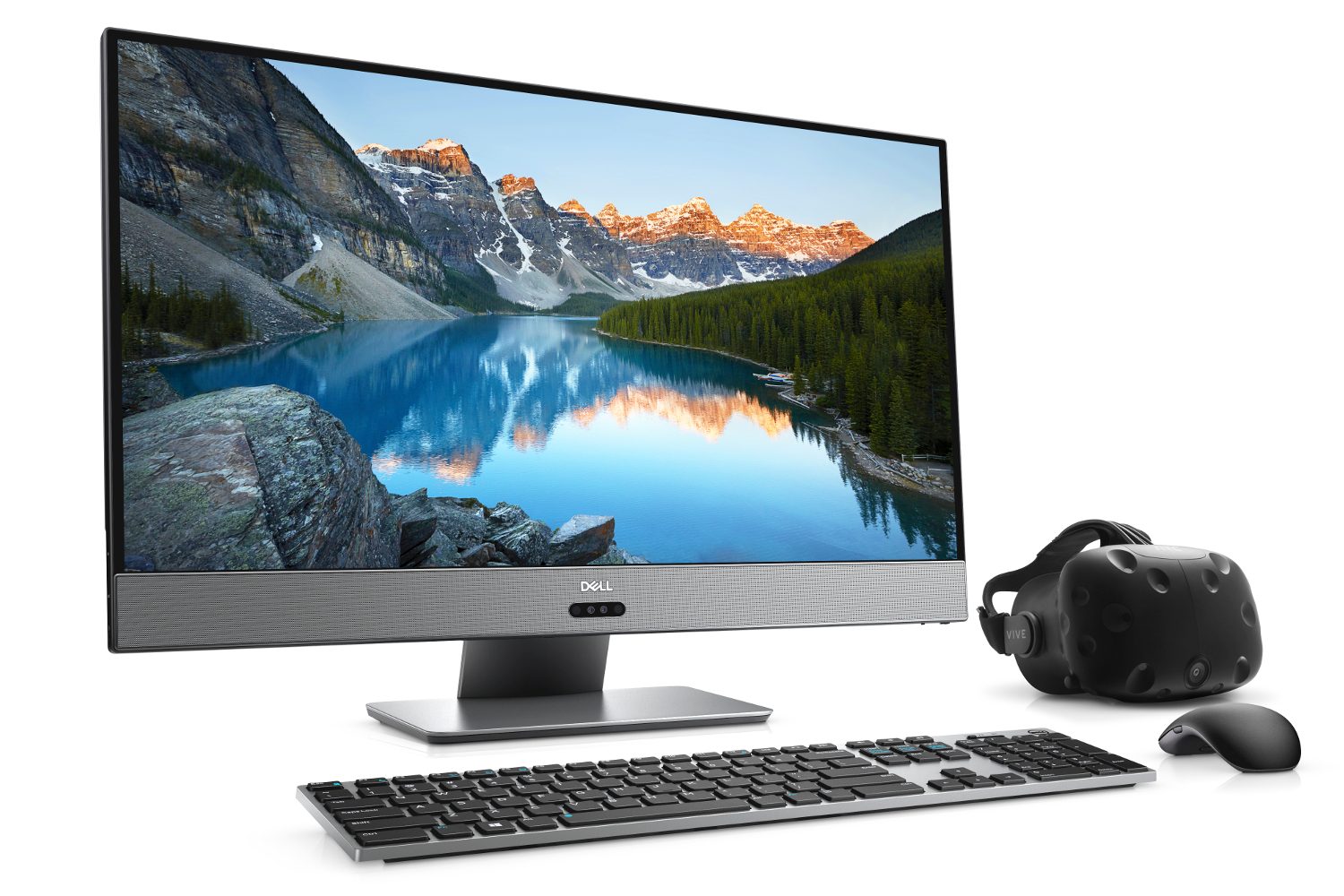

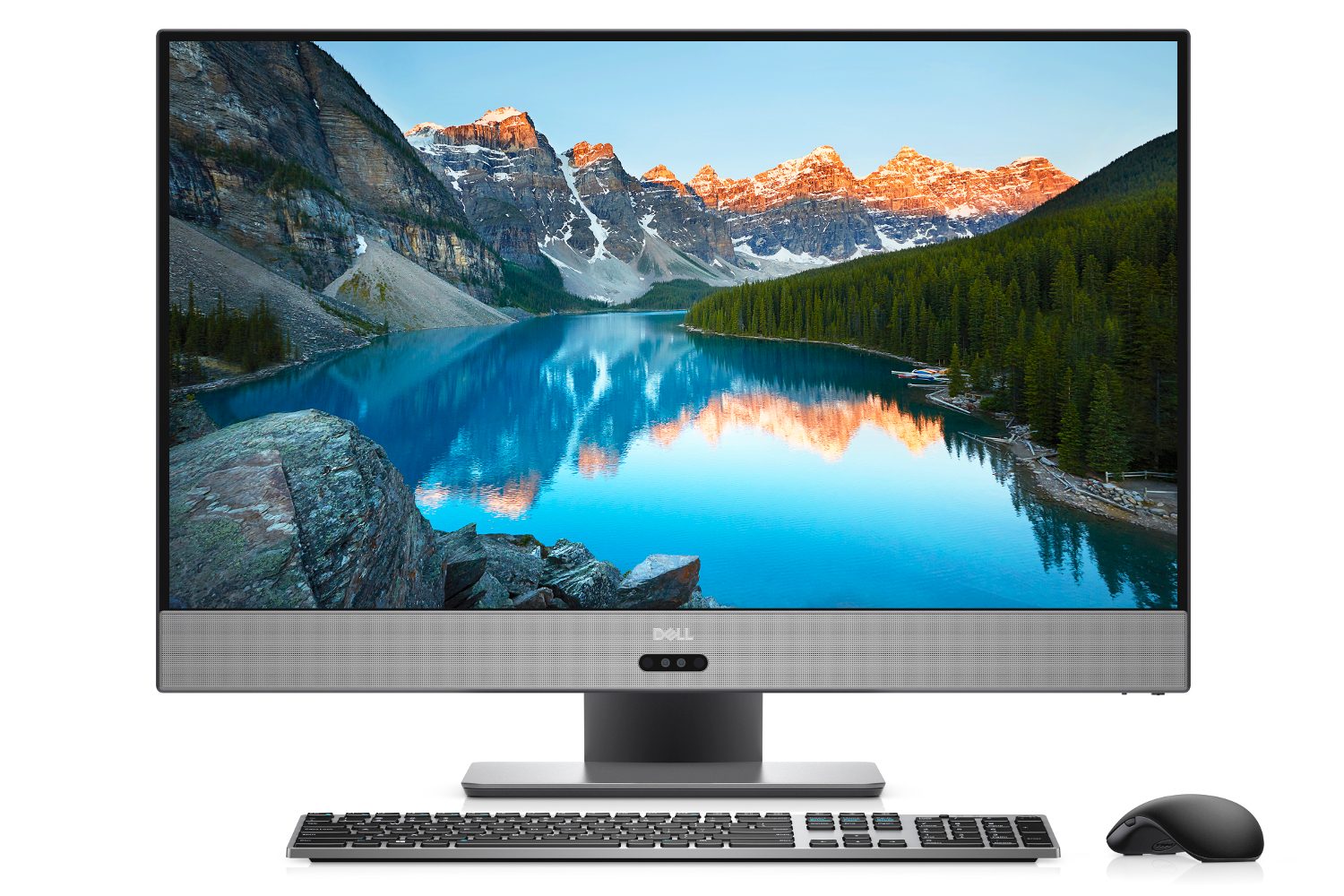

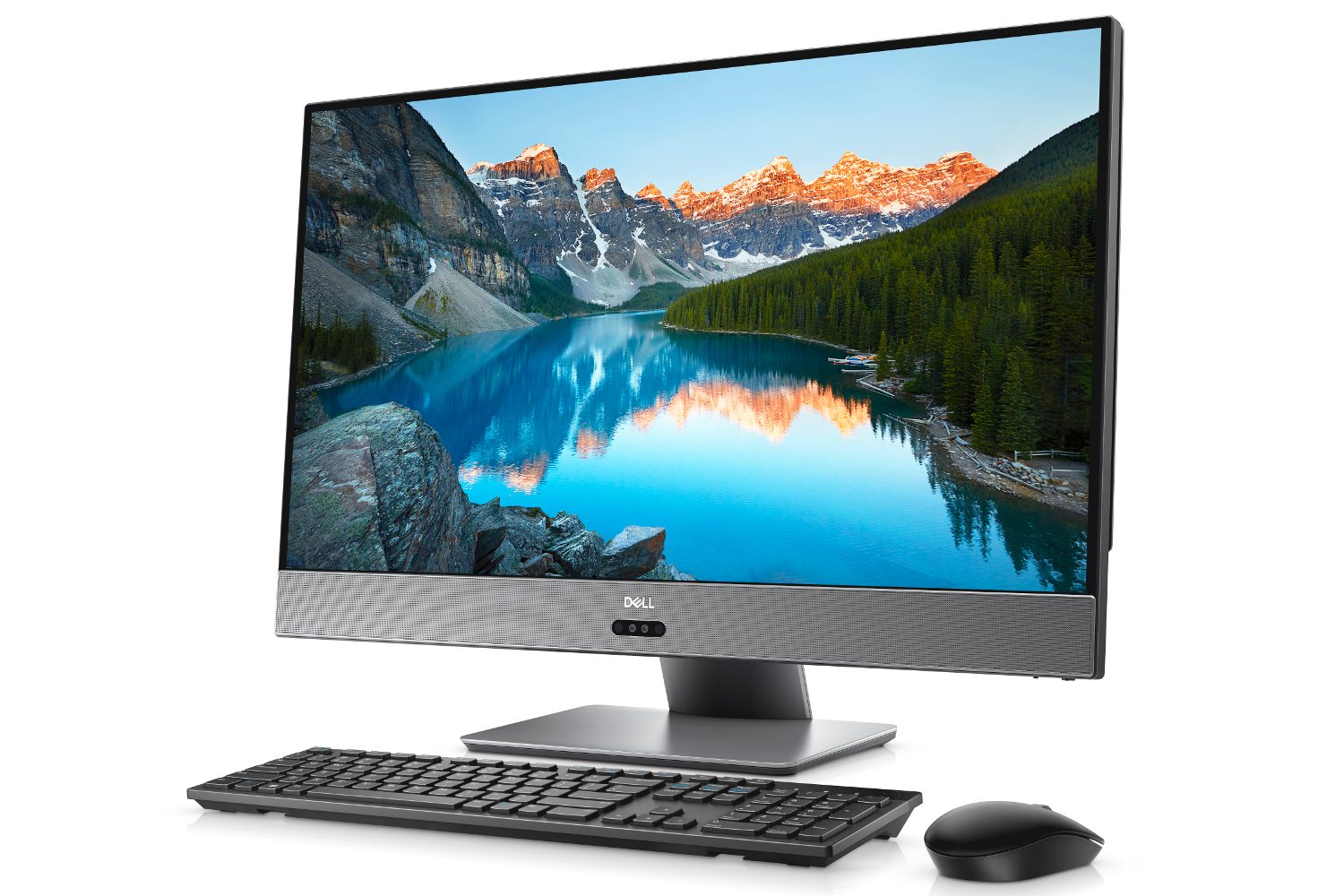

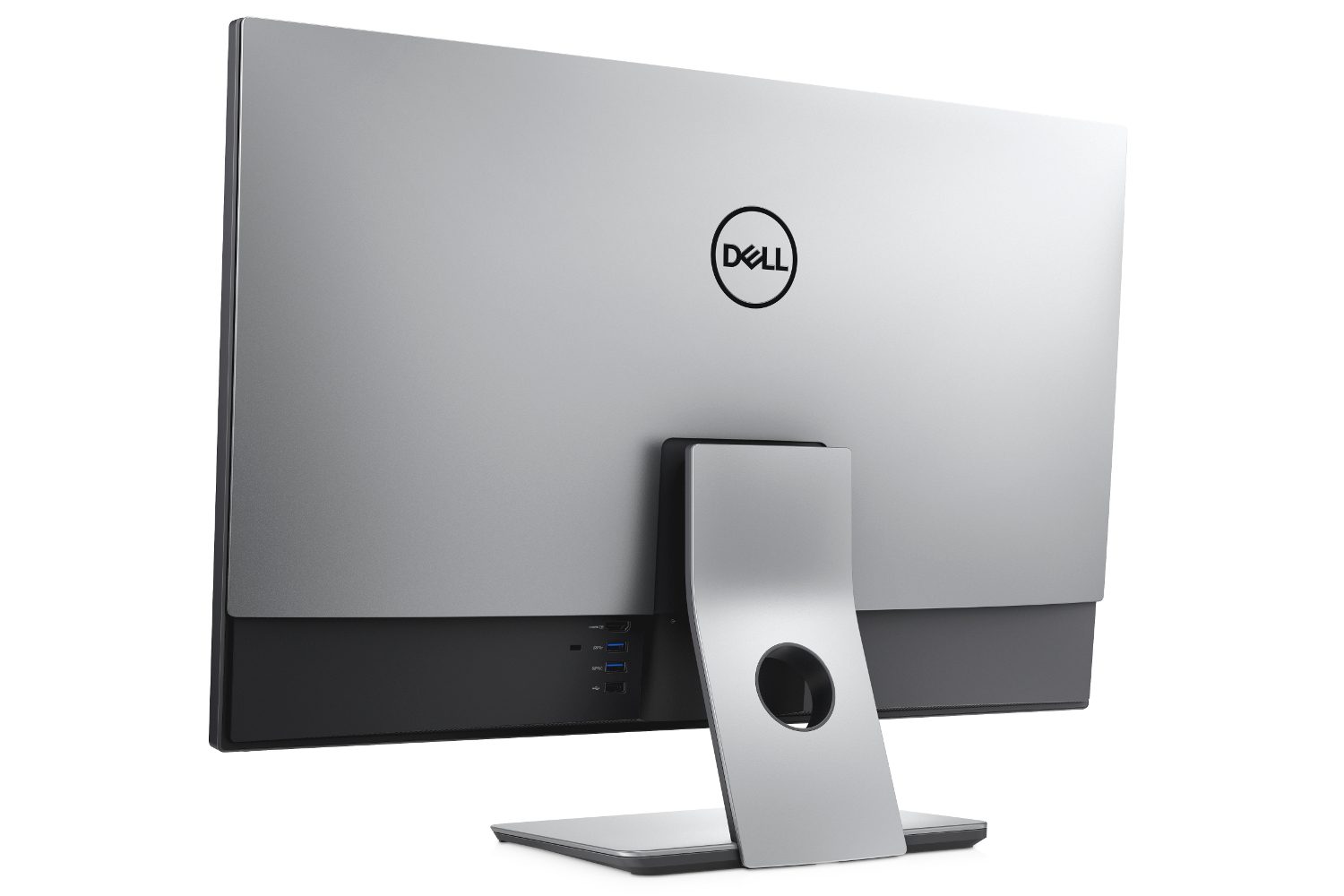

Dell Inspiron 27 7000 AIO
Similar to the Inspiron desktop, this 27-inch, all-in-one PC is based on AMD’s Ryzen desktop processors, too — namely the Ryzen 7 1700 and the Ryzen 5 1400. Backing these chips are AMD’s discrete Radeon RX 580 and Radeon RX 560 graphics cards, which made their debut earlier this year as price-friendly solutions for upgrading PCs to support high-quality virtual reality (HTC Vive, Oculus Rift).
According to Dell, this all-in-one PC sports an InfinityEdge screen, which boils down to super-slim bezels on the left, right, and top of the viewing area. It’s backed by a panel based on In-Plane Switching (IPS) technology, which is known for deep, rich colors and superwide viewing angles. Memory options span from 8GB to 32GB (two memory slots) while the storage options range from a single 1TB hard drive to dual-storage configurations mixing an SSD with a hard drive.
“The back cover of the Inspiron 27 7000 is removable, providing easy access to the HDD as well as SSD storage and memory,” Dell states. “It’s beautiful on the outside too, with a sleek, sophisticated design you’ll be proud to show off.”
Here are the hardware options:
Model: | Inspiron 27-7775 |
Screen size: | 27 inches |
Screen type: | IPS (InfinityEdge) |
Resolution: | 3840 x 2160 @ 350 nits 1920 x 1080 @ 250 nits |
Operating system: | Windows 10 Home 64-bit |
Processors: | AMD Ryzen 7 1700 AMD Ryzen 5 1400 |
Discrete graphics: | Radeon RX 580 (8GB GDDR5) Radeon RX 560 (4GB GDDR5) |
System memory (DDR4, 2x slots) |
8GB @ 2,400MHz (8GB x 1 or 4GB x 2) 12GB @ 2,400MHz (8GB + 4GB) 16GB @ 2,400MHz (16GB x 1 or 8GB x 2) 32GB @ 2,400MHz (16GB x 2) |
Storage (HDD): | 1TB @ 5,400RPM 1TB @ 7,200RPM |
Storage (mixed): | 128GB SSD + 1TB 5,400RPM HDD 256GB PCIe NVMe SSD + 1TB 5,400RPM HDD |
Storage (optical): | External, sold separately |
Audio: | Performance Stereo speakers professionally tuned with Waves MaxxAudio Pro |
Camera: | 720p webcam with quad array digital microphones Infrared facial recognition camera |
Ports (side): | 1x USB 3.1 Gen1 Type-A 1x SD card reader 1x Microphone/headset jack |

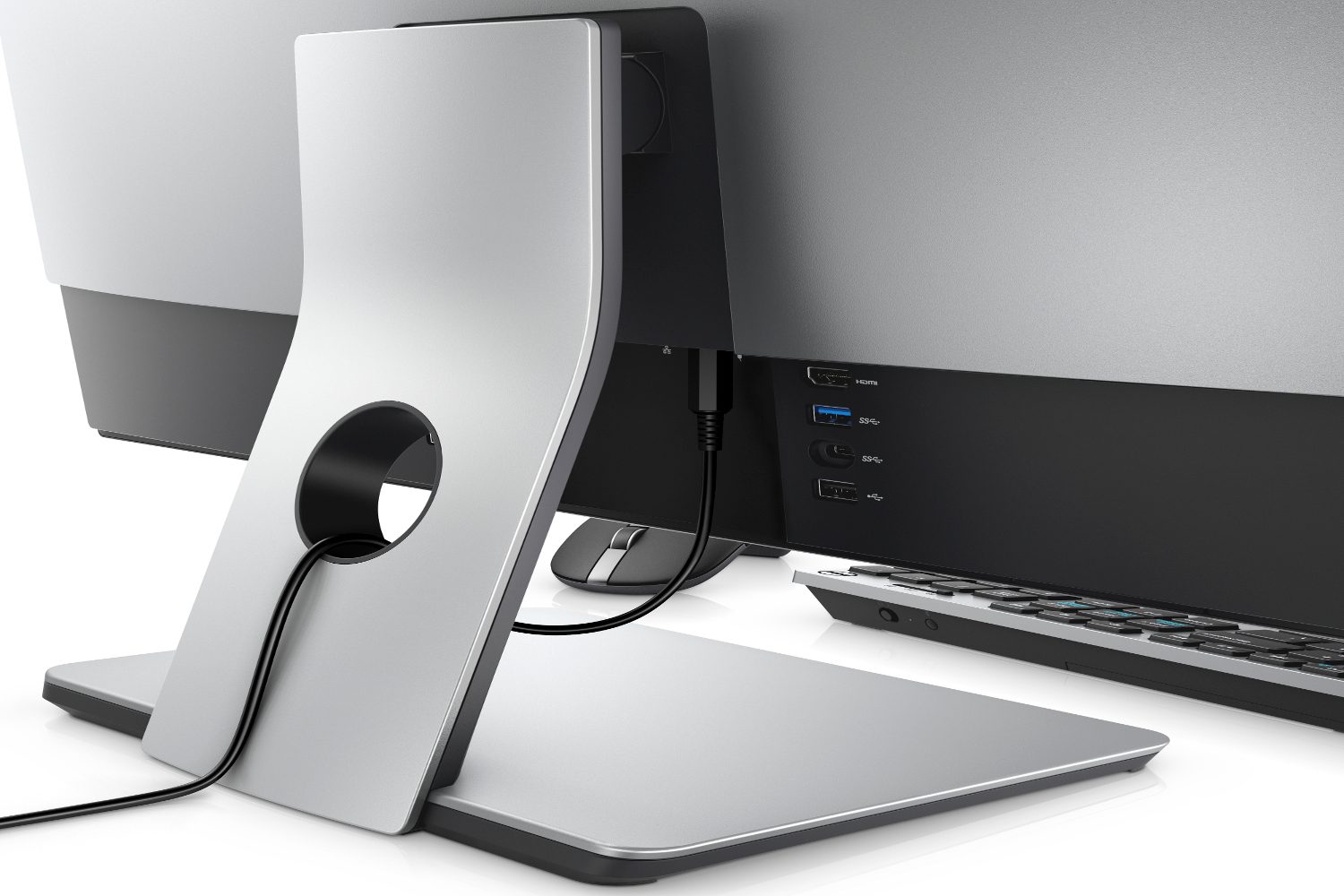

Ports (back): | 2x USB 2.0 Type-A 3x USB 3.1 Gen1 Type-A (one charges) 1x USB 3.1 Gen1 Type-C 1x HDMI input 1x HDMI output |
Ports (below): | 1x Audio line out 1x Gigabit Ethernet |
Connectivity: | Wireless AC (2×2) (Up to 867Mbps) Wireless AC (1×1) (Up to 433Mbps) Bluetooth 4.1 |
Power supply: | 180 watts (RX 560 model) 330 watts (RX 580 model) |
Dimensions: | 15.5 (H) x 24.2 (W) x 2.1 (D) inches |
Starting weight: | 22.3 pounds |
Color: | Silver |
Peripherals: | Base – Dell wireless keyboard and mouse (KM 636) Premium – Dell Premier wireless keyboard and mouse (KM 717) |
Pre-installed software: |
Dell Digital Delivery Dell Recovery Environment SupportAssist DropBox Microsoft Office 2016 trial McAfee LiveSafe (30-day) |
Availability: | May 30, 2017 |
Starting price: | $1,000 |

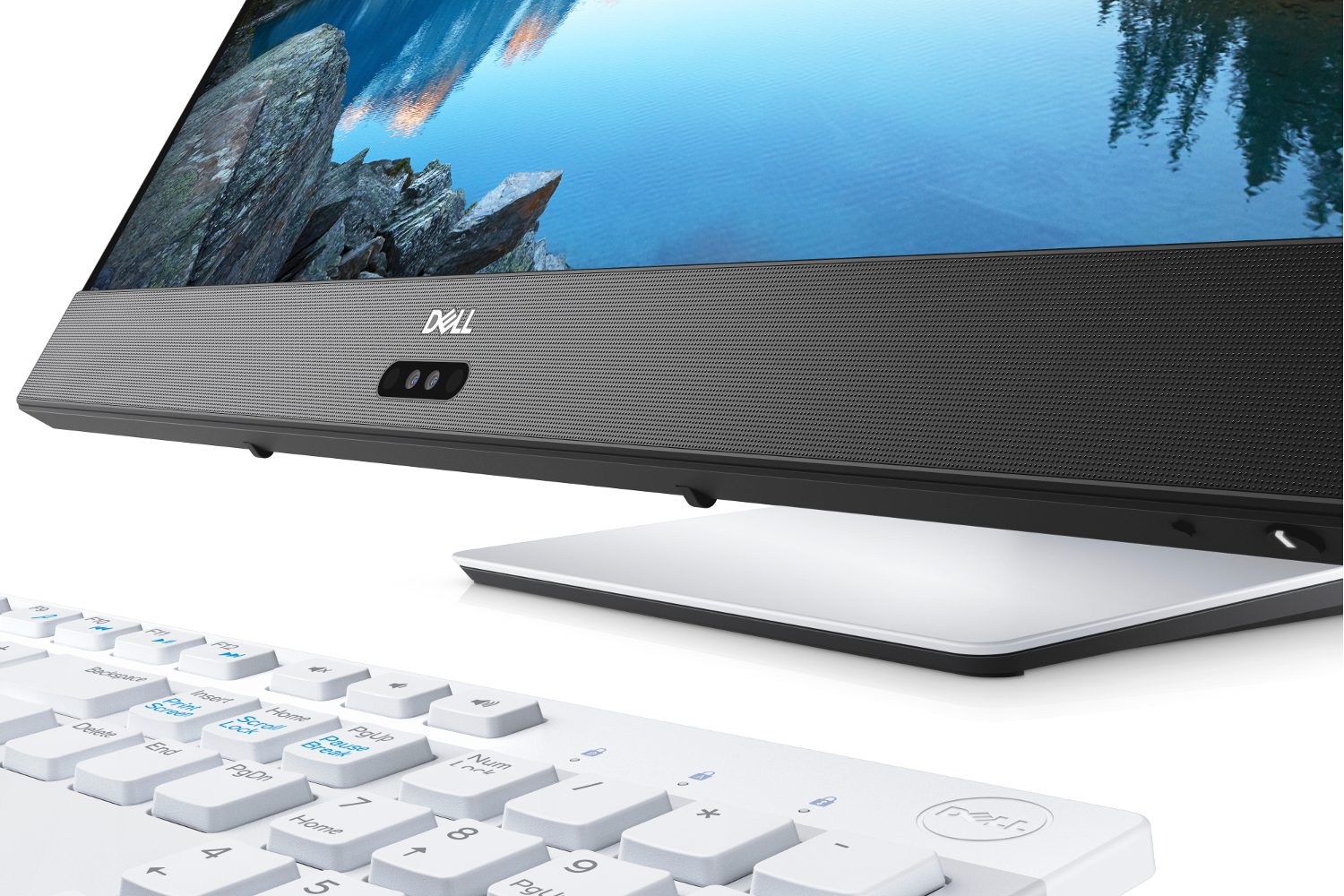

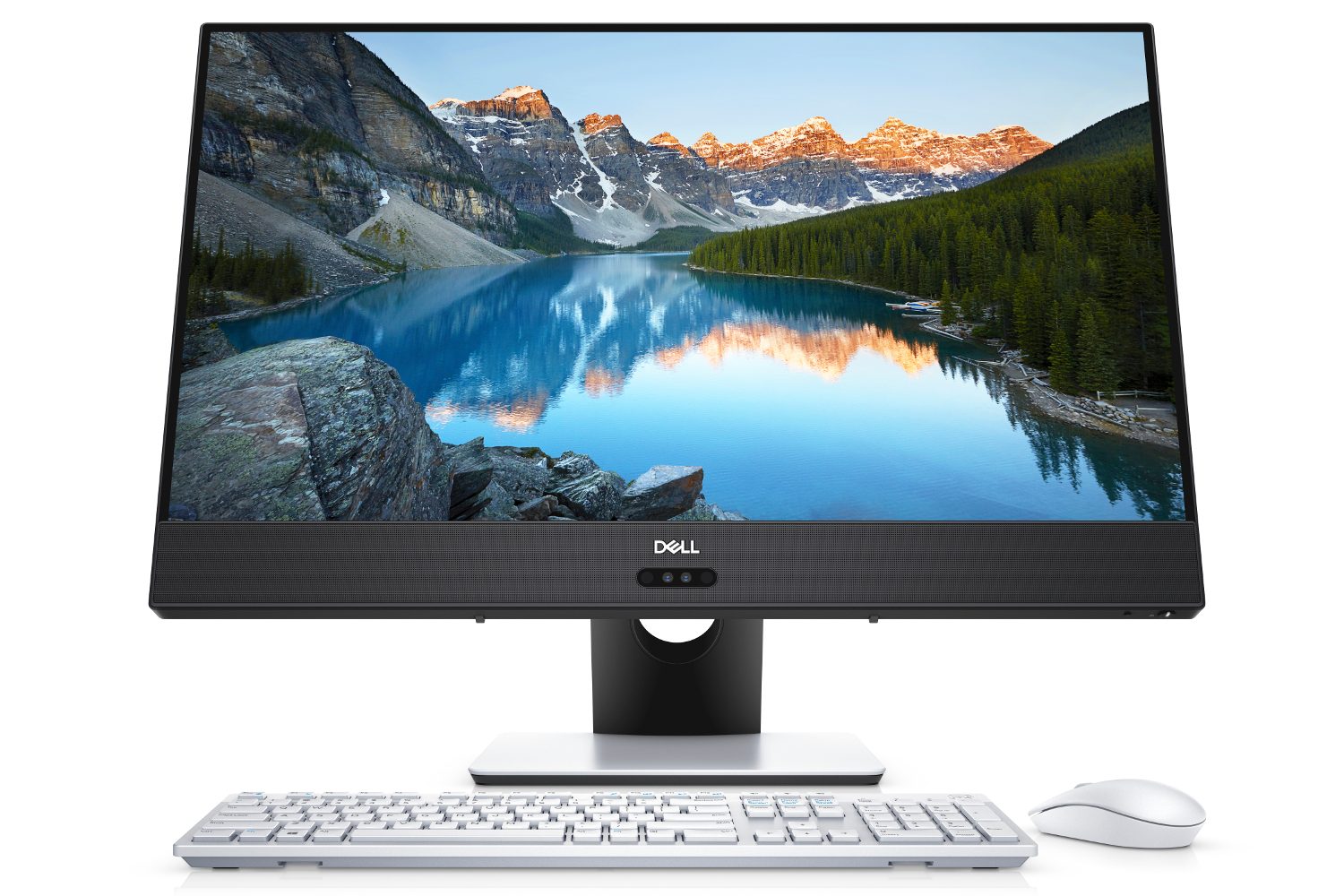

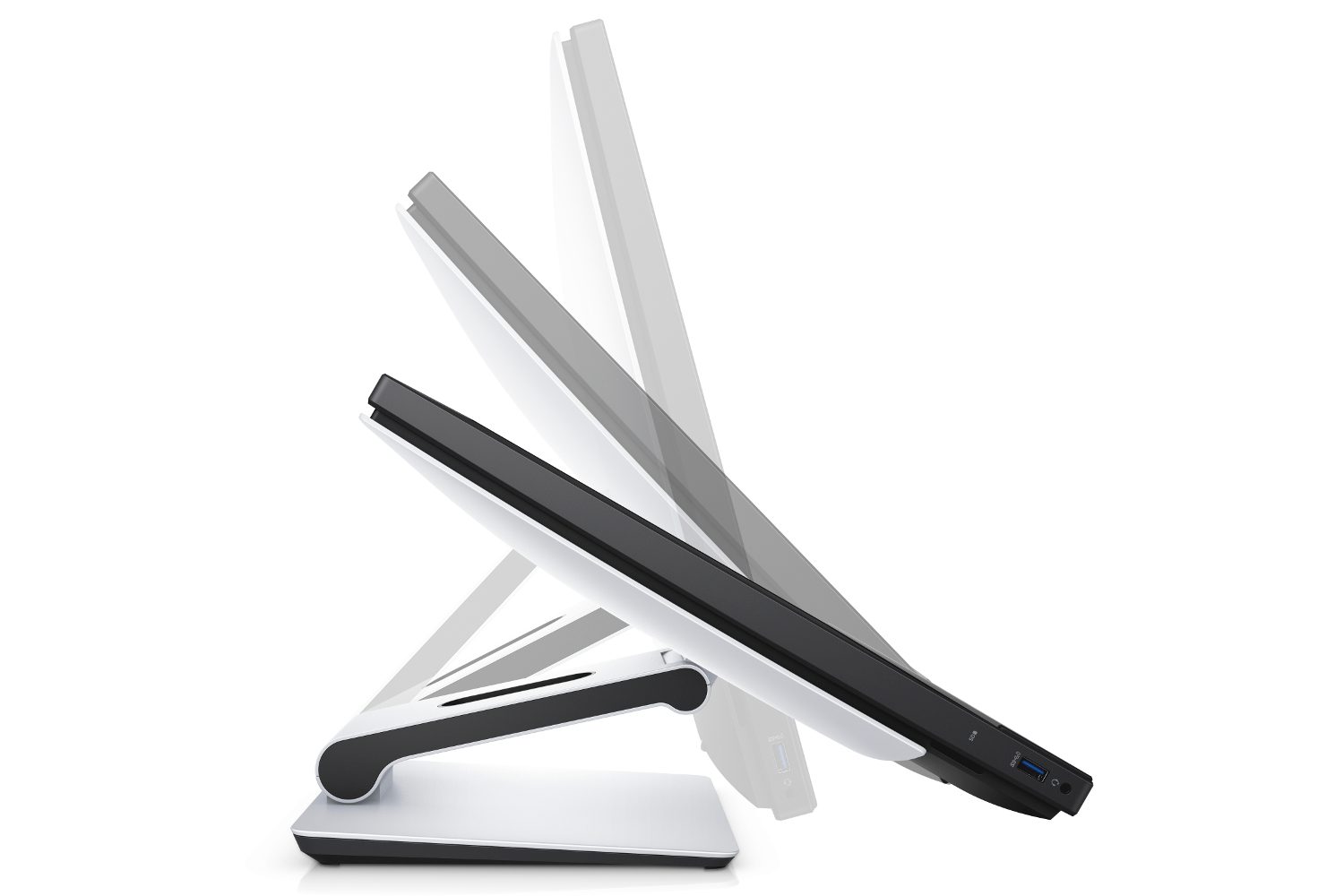

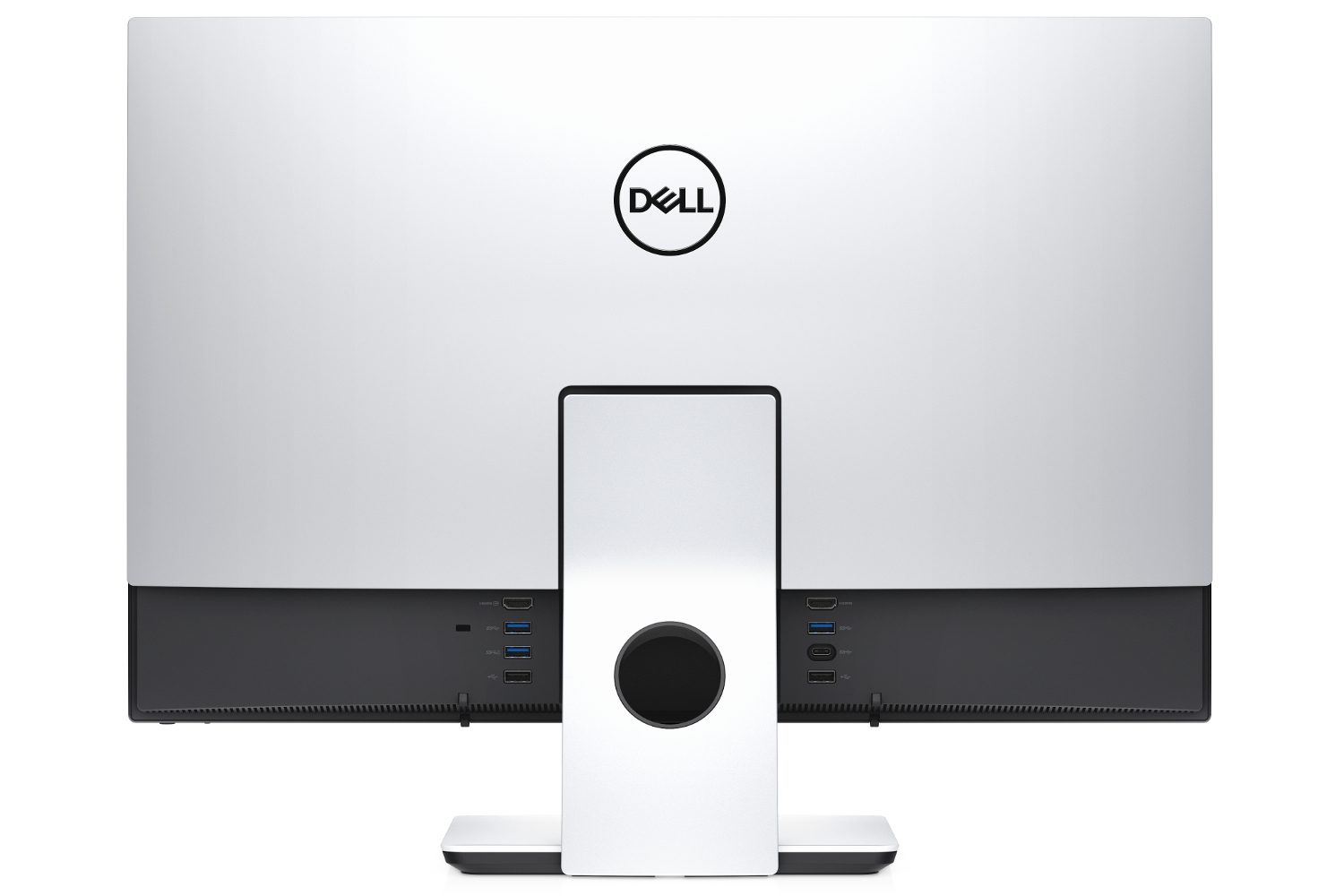

Dell Inspiron 24 5000 AIO
Outside its smaller form factor and screen, what makes this all-in-one PC different than the Inspiron 27 7000 is that it’s based on AMD’s latest A-Series all-in-one processors (APUs), which have an integrated Radeon R7 GPU component, instead of Ryzen. However, customers can option to add AMD’s discrete Radeon RX 560 graphics card if they want to experience high-definition virtual reality experiences.

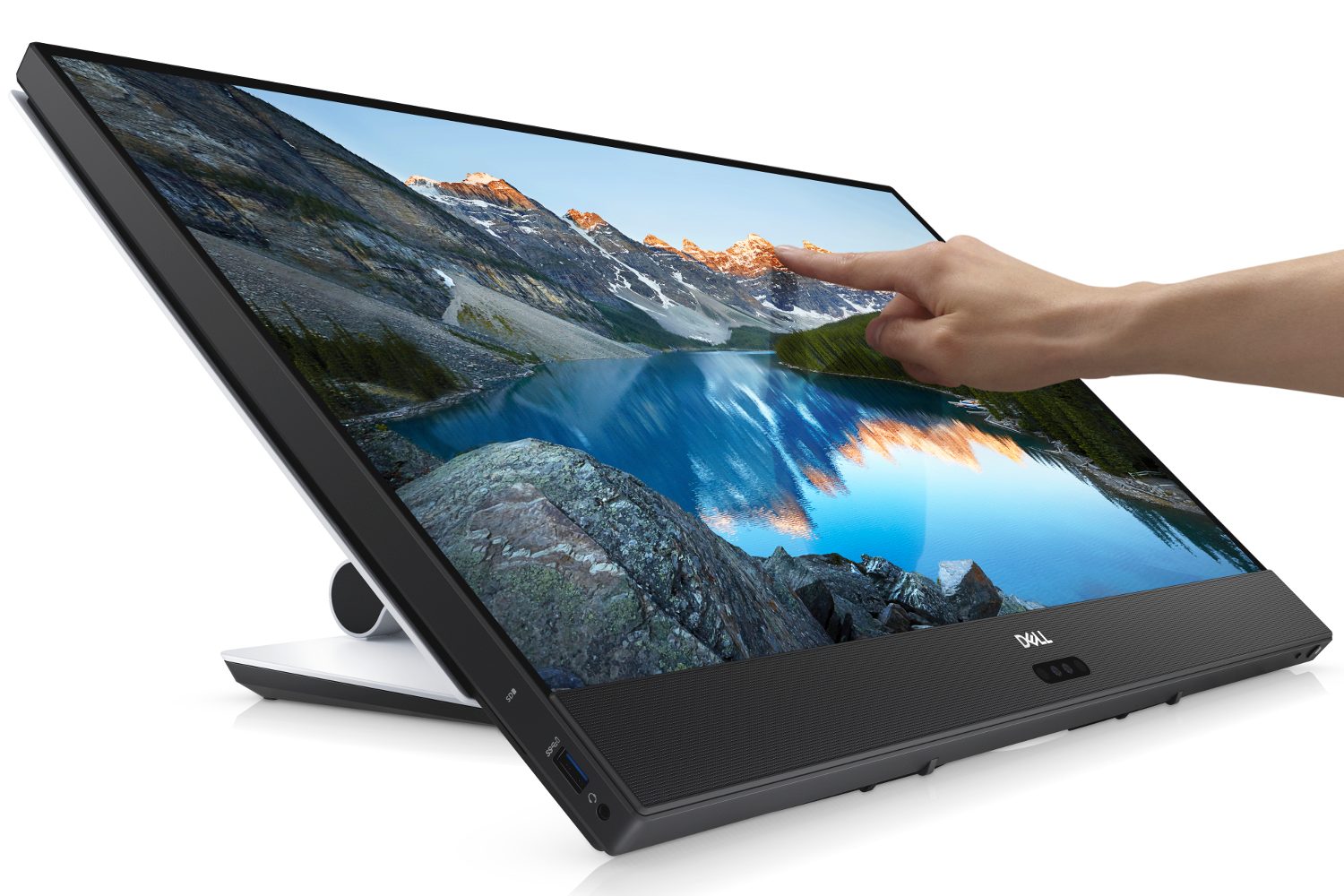

Outside the size and processor differences, this model appears to offer the same features as the larger Inspiron 27 7000, such as up to 32GB of system memory and several storage options. However, this model includes optional touch support, which isn’t offered on the bigger all-in-one PC. Still, it’s locked down to a 1,920 x 1,080 resolution, whereas the larger Inspiron 27 7000 provides up to 4K resolution.
Note that both Inspiron all-in-one PCs include an infrared facial recognition camera. This is compatible with Windows Hello, which allows users to log onto the PC using their face instead of a passwords or PIN.
Model: | Inspiron 24-5475 |
Screen size: | 23.8 inches |
Screen type: | IPS (InfinityEdge) |
Resolution: | 1920 x 1080 @ 250 nits (with Touch and without) |
Operating system: | Windows 10 Home 64-bit |
Processors: | AMD A12-9800E APU AMD A10-9700E APU |
Discrete graphics: | Radeon RX 560 (4GB GDDR5) |
System memory: (DDR4, 2x slots) |
4GB @ 2,400MHz (4GB x 1 or 2GB x 2) 8GB @ 2,400MHz (8GB x 1 or 4GB x 2) 12GB @ 2,400MHz (8GB + 4GB) 16GB @ 2,400MHz (8GB x 2) 32GB @ 2,400MHz (16GB x 2) |
Storage (HDD): | 500GB 5,400RPM 1TB 5,400RPM 1TB 7,200RPM |
Storage (mixed): | 128GB SSD + 1TB 5,400RPM HDD 256GB PCle NVMe SSD +1TB 5,400RPM HDD |
Storage (optical): | External, sold separately |
Audio: | Performance Stereo speakers professionally tuned with Waves MaxxAudio Pro |
Camera: | 720p webcam with quad array digital microphones Infrared facial recognition camera |
Ports (side): | 1x USB 3.1 Gen1 Type-A 1x SD card reader 1x Microphone/headset jack |
Ports (back): | 2x USB 2.0 Type-A 3x USB 3.1 Gen1 Type-A (one charges) 1x USB 3.1 Gen1 Type-C 1x HDMI input 1x HDMI output |
Ports (below): | 1x Audio line out 1x Gigabit Ethernet |
Connectivity: | Wireless AC (2×2) (Up to 867Mbps) Wireless AC (1×1) (Up to 433Mbps) Bluetooth 4.1 |
Power supply: | 130 watts (no discrete Radeon GPU) 180 watts (with discrete Radeon GPU) |
Dimensions: | 13.9 (H) x 21.3 (W) x 2.1 (D) inches |
Starting weight: | 16.20 pounds |
Color: | White |
Peripherals: | Base — Dell wireless keyboard and mouse (KM 636) Premium — Dell Premier wireless keyboard and mouse (KM 717) |
Pre-installed software: |
Dell Digital Delivery Dell Recovery Environment SupportAssist DropBox Microsoft Office 2016 trial McAfee LiveSafe (30-day) |
Availability: | May 30, 2017 |
Starting price: | $700 |
